Product type：TFT LCD Display
Show contents：200x648

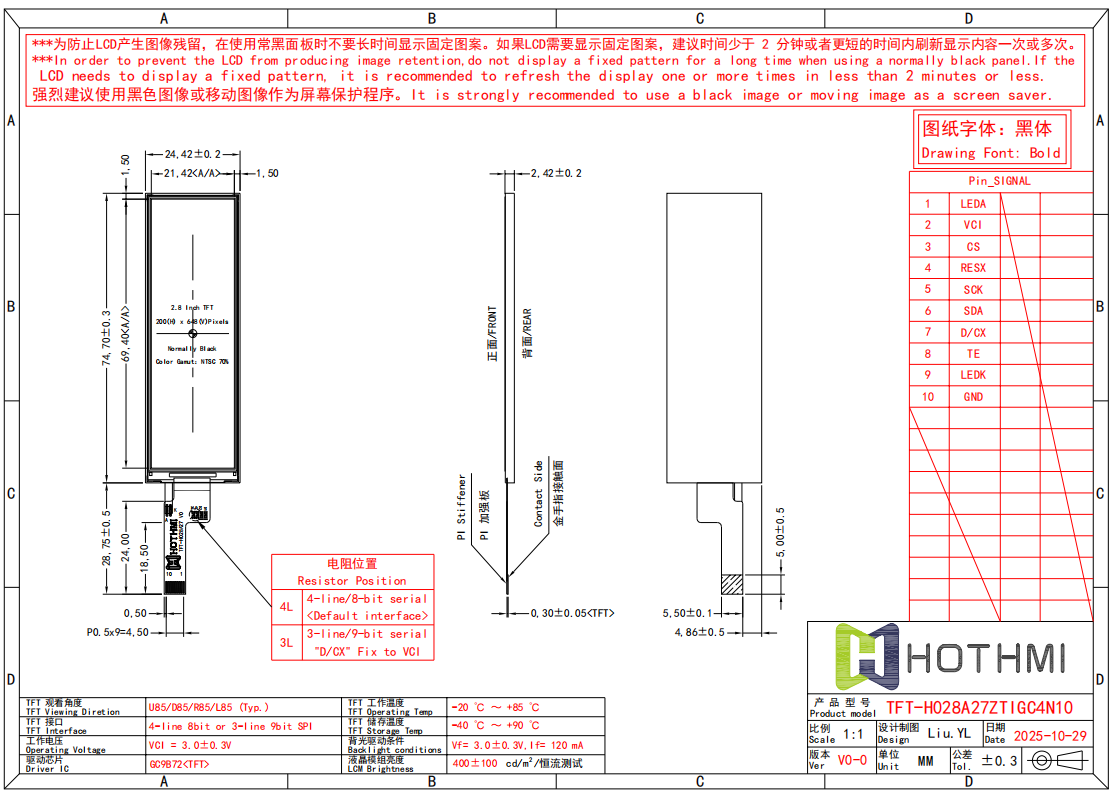

Outline size(mm) ：24.42x74.7x2.42
Size of View Window(mm)：2.8
Display size(mm) ：2.8
Effective size(mm)：24.42x74.7x2.42
Product application：Handheld devices, technical equipment
Visual angle：IPS
Backlight type or brightness：500cd/M2
Connection PIN Number：10 PIN
Interface mode：SPI
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3
Driver chip model：GC9B72
In the demanding fields of medical equipment and sophisticated central control systems, display performance is non-negotiable. Meet the solution: the advanced 2.8 inch Bar TFT LCD Display. Engineered for excellence, this screen is built to deliver unparalleled reliability and clarity in critical applications.
The cornerstone of this module is its superior IPS Full View technology, ensuring consistent, vibrant colors and a wide viewing angle from any orientation. The high brightness backlight guarantees perfect readability even in brightly lit environments, making every detail sharp and clear. For system integrators, the versatile 2.8 inch Bar TFT LCD Display offers seamless integration through its standard interface and a robust driver chip that ensures smooth, efficient performance.
Durability is a key feature. This display is designed to withstand challenging conditions, operating flawlessly across a wide temperature range. Its built-in protection against electrostatic discharge provides an extra layer of reliability, ensuring the unit's longevity in sensitive and industrial settings. The compact and slender exterior design of the 2.8 inch Bar TFT LCD Display maximizes the active viewing area without compromising on space, making it an ideal choice for modern, compact devices.
Whether it's for a life-saving medical monitor or a complex central control panel, the 2.8 inch Bar TFT LCD Display delivers the performance you can trust. Its low voltage requirement further enhances its suitability for a wide array of portable and fixed electronic systems. Choose the 2.8 inch Bar TFT LCD Display for a perfect blend of innovative technology, robust construction, and exceptional visual performance.
